Non-metallic compact substation with a weather-resistant, corrosion-proof enclosure integrating transformer and HV/LV switchgear. Ideal for residential communities and industrial parks.

1. The enclosure is made of special fiberglass-reinforced cement with an attractive appearance and easy maintenance. It provides flame retardance, thermal insulation, corrosion resistance and anti-condensation performance. Enclosure color and material options are available.

2. Compartments within the substation are separated into independent rooms. Lighting is provided in each room for operation, monitoring and maintenance; the transformer room is equipped with automatic ventilation.

3. The HV room is fitted with HXGN series ring-main units with complete five-protection interlocking.

1. Substation model and quantity

2. Transformer model and parameters

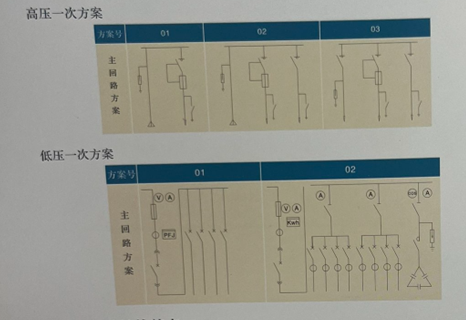

3. Primary HV/LV scheme and main component models

4. Other special requirements
